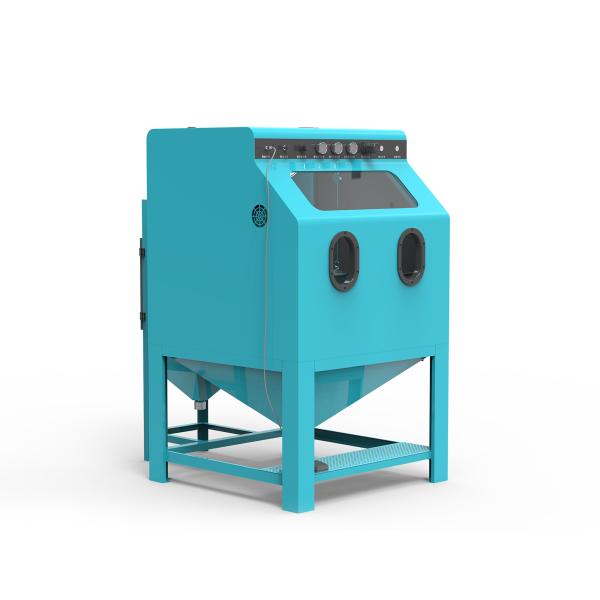

Industrial Sandblasting Machine GBT-PSG1010 | Large Chamber, High Performance
Quick Detail:
-
Spacious 1000×1000×820mm Working Chamber
-
Suitable for Large and Bulk Items
-
High-Pressure Blasting with Consistent Results
-
Durable Construction for Long-Term Use
-
Wide Use in Auto, Mold, and Metal Industries
Description:
Designed for industrial applications, the GUBOT GBT-PSG1010 sandblasting machine offers a large working chamber capable of handling big and multiple workpieces. It delivers high-pressure, uniform blasting for effective surface preparation. Built with robust materials and a reliable dust collection system, it is ideal for automotive, metalworking, and manufacturing sectors.
Specifications:
| item |
Technical parameters |
| Working pressure |
0.4-0.7mpa |
| Air consumption |
2-3m³/min |
| Guns (number) |
1 |
| Air source nozzle pipe diameter |
Φ16 |
| voltage |
220V50HZ |
| Working bin dimensions (L * W * H) |
985*985 |
| Equipment size |
165*100*140 |
| Net weight |
220kg |
Notices:
- Ensure air source connections are secure and the pressure meets equipment requirements before operation.
- Select appropriate abrasive type and grit size for the desired surface finish.
- Regularly clean the internal chamber and dust collection system to maintain optimal performance.
- Operators must wear proper protective equipment, including dust masks, goggles, and gloves, for safety.
Applications:
The GBT-PSG1010 sandblasting machine is widely used in automotive repair, wheel refurbishment, mold cleaning, mechanical parts rust removal, and surface deburring, as well as any industry requiring surface pre-treatment or precision sandblasting.
FAQ:
Q1: What types of abrasive materials are compatible with the GBT-PSG1010?
A: Recommended abrasives range from 14 to 320 mesh. For aluminum alloy wheels, 46 mesh is ideal. Selection depends on workpiece material and desired finish.
Q2: How effective is the dust collection system?
A: It uses a high-precision filter cartridge system to efficiently capture dust, keeping the work environment clean and safe.
Q3: Is the GBT-PSG1010 safe to operate?
A: Yes. It features a wide-view window, explosion-proof LED lighting, and a foot pedal control system, allowing hands-free and safe operation.
Q4: What is the maximum workpiece size it can accommodate?
A: The working chamber size is 1000 × 1000 × 820 mm, suitable for large or bulk items.
Q5: What is the nozzle’s lifespan?
A: Equipped with B-type boron carbide nozzles, which are highly durable and wear-resistant. Lifespan varies by abrasive type and usage frequency.
Q6: What are the air supply requirements?
A: Stable air pressure is crucial. Input pressure should range from 0–0.6 MPa for consistent blasting performance.
Q7: Is GBT-PSG1010 suitable for long-duration operation?
A: Yes. Its robust structure and good heat dissipation make it suitable for extended use. Routine maintenance is recommended to extend lifespan.
Q8: Is abrasive replacement easy?
A: Yes. The design allows for quick and easy abrasive replacement. Please refer to the user manual for detailed instructions.
Custom Attributes:
Model: GBT-PSG1010
Core Functions: Surface cleaning, rust removal, paint stripping, oxide layer removal, pre-coating preparation
Working Chamber Size: 1000 × 1000 × 820 mm
Dust Collection System: Pulse bag dust collector
Nozzle Type: B-type boron carbide nozzle
Key Features: High-efficiency removal, uniform sandblasting, easy operation, safe and eco-friendly
Applicable Materials: Metal, glass, and more
Target Markets: Automotive repair, mold manufacturing, metal processing, industrial cleaning, etc.
General Information:
Origin: Shanghai, China
Brand: GUBOT
Model: GBT-PSG1010
Certification: CE
Commercial Terms:
Minimum Order Quantity: 1 unit
Price: On request
Packaging Details: Standard export wooden crate with moisture and impact protection
Delivery Time: Ships within 7 days after payment; approx. 30 days for sea freight; total lead time ~37 days
Payment Terms: Telegraphic Transfer (T/T) only
Product Tags:
|
|
220V 50HZ Wheel Sandblasting Machine 1000mm Industrial Sandblasting Machine Images
|
